What are the different MX power modules that are available?

This article discusses the different power modules available for MX systems.

Product applicability

The following products are discussed in this article:

  • MX Series: R920-MX, R829-MX, R247-MX and CHEVRON-MX

Below are the different models of power modules available for MX systems:

  1. MX 100 Solar Power Module
  2. MX 200 Solar Power Module
  3. MX 300 Solar Cabinet Module
  4. MX 400 Solar Cabinet Module
  5. MX 300 AC Cabinet Module
  6. MX 400 AC Cabinet Module

The options above come in three different varieties based on power requirements:

  1. Solar Power Module - self-contained solar
  2. Solar Cabinet Module - NEMA 3R battery cabinet with external solar panel
  3. AC Cabinet Module - NEMA 3R power cabinet with AC power supply
Solar Powered
Model Solar Panel Sizes Battery Sizes Lock Image
MX 100 Solar Power Module 15 W

up to 2x 7 Ah

(14 Ah)

Padlockable

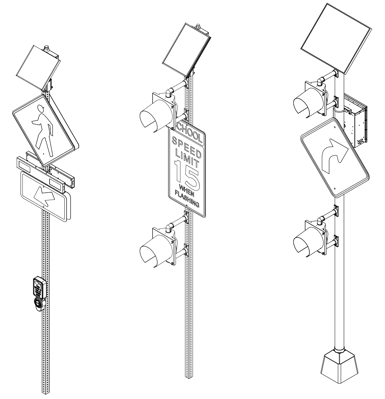

MX 200 Solar Power Module

30 W

50 W

 up to 2x 18 Ah (36 Ah)

Padlockable

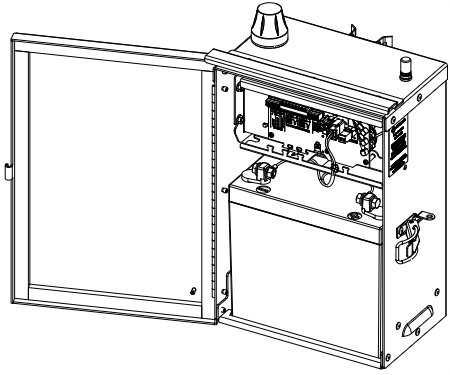

MX 300 Solar Cabinet Module

50 W

80 W

170 W

35 Ah

55 Ah

Padlockable

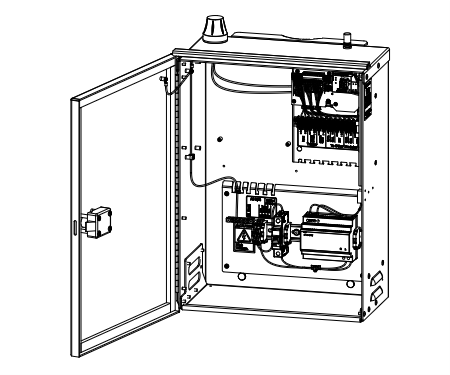

MX 400 Solar Cabinet Module

50 W

80 W

170 W

35 Ah

55 Ah

100 Ah

Integrated

(optional padlock latch)



AC Powered
Model Power Supply  Breaker/Fuse Lock Image

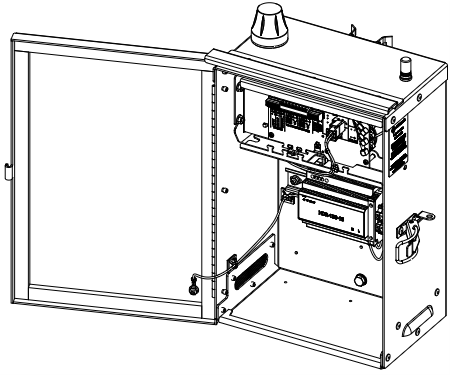

MX 300 AC Cabinet Module 150 W

4 A fuse

Padlockable

MX 400 AC Cabinet Module 150 W

4 A breaker

Integrated

(optional padlock latch)
