Below is a visual repository of various Gen 3 Carmanah beacon systems components.
| System/Part | Image |
|
E Series Engine |
 |
|
F Series Engine |
 |
| G Series Cabinet |  |
|
Override Switch Box |
|
| G Series Integrated Lock (standard) |  |
| G Series Padlock Latch (optional) |  |
| G Series Door Switch (Applied Information equipped systems only) |  |
|
G Series Circuit Breaker (4 A) |
 |
|
G Series AC Backplane |
 |
|

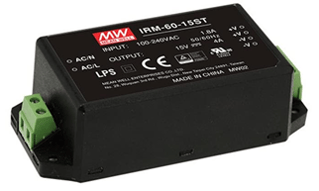

G Series AC Power Supply (60 W, 15 V) |
 |
| Energy Management System (EMS) |  |
|
Light Bar (black, yellow, green powder coated covers) |
 |
|
Light Bar Backplates |
 |
|

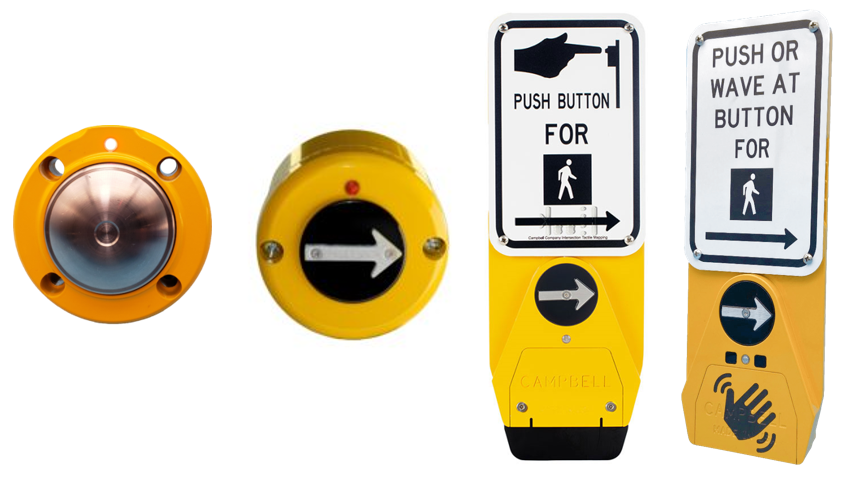

Pushbuttons (Polara) |
 |
|
Pushbuttons (Campbell) |
 |
|

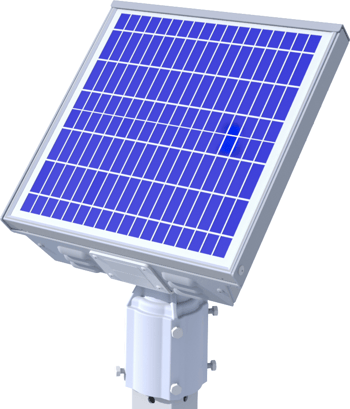

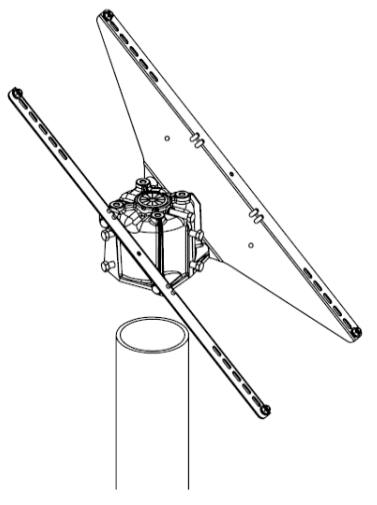

Top of pole solar engine mounts (E Series and F Series) |
|
|

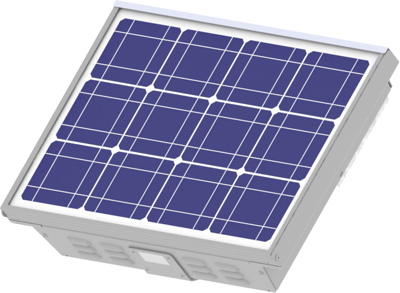

Top of pole solar panel mounts (G Series) |
For 3.5 - 4.5" OD round poles 50 or 80 W solar panels only |
|
Side of pole solar panel mount (G Series) |
Size of mount depends on solar panel size |
|

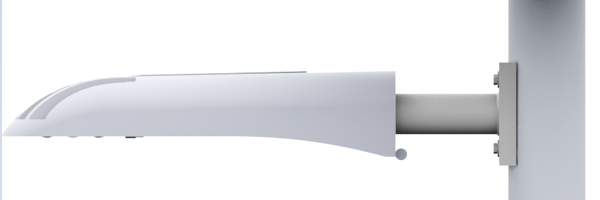

Overhead Lighting |
 |
| R838 Wireless Beacon Controller |  |
|
Rack-Mount Controller (19U rack frame) |
 |
| G Series Hole Plug Kit (optional) |  |
|
E Series Batteries (7 Ah, two per system) |
 |
|
F Series Batteries (18 Ah, two per system) |
 |
| System/Part | Image |
|

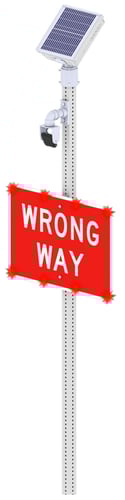

WW400 (WW400D detector unit and WW400S warning sign) |
  |
|
WW200 (Wrong-Way Vehicle Detection and Warning System)
|
 |
|
WW100 (24-hour flashing wrong-way warning sign)
|
|
