Below is a visual repository of various MX system components.
| Part Number | Description | Image |
|
90499 90501 |

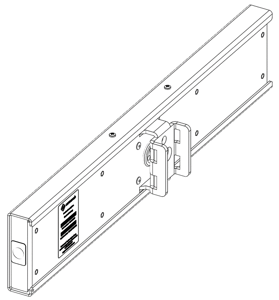

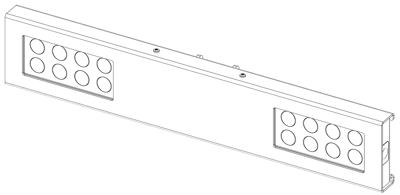

MX RRFB Module - includes mounting bracket |
  |
|
90493 90494 |

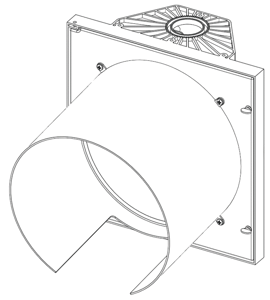

MX Beacon Module, 12", Polycarbonate - includes yellow LED and yellow/black signal head |
 |
|
90651 90652 |
MX Beacon Module, 12", Polycarbonate - includes red LED and yellow/black signal head |
|
|
90488
|
MX Beacon Module, 8", Polycarbonate - includes yellow LED and yellow signal head |
 |
|
90646 |
MX Beacon Module, 8", Polycarbonate - includes red LED and yellow signal head |
|
|
90496 90497 |
MX Beacon Module, 12", Aluminum - includes yellow LED and yellow/black signal head |
 |
|
90654 90655 |
MX Beacon Module, 12", Aluminum - includes red LED and yellow/black signal head |
|
| Various |

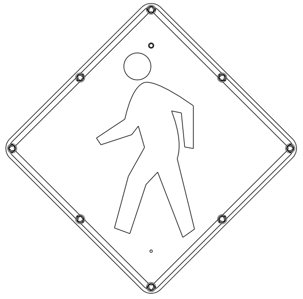

MX LED Sign Module (various options) |
|
|
90854 90856 |
MX LED Sign Module, Chevron Alignment (W1-8) |
 |
| 91488 | Overhead Lighting Fixture (DC) |  |
| Part Number | Description | Image |
| 91921 | MX RRFB Module Mast Arm Kit |  |
| 91882 | MX RRFB Backplate (black) |  |
| 91883 |
MX RRFB Backplate (FYG) |
 |
|
91619 91620 91621 |
MX Beacon Module Side of Pole — Extrusion Arm (arm only) |  |
|
91909 91910 91911 |
MX Beacon Module Top of Pole — 2 - 2.5" Square or 2.38 - 2.88" Round |
|
|
91913 91914 91915 |
MX Beacon Module Top of Pole — 3.5 - 4.5" Round |  |
| 91624 | MX Beacon Module Top of Pole — Square Wood Post |  |
|
91581 91582 |
MX Beacon Module Side of Pole — 2 Arms/Hub Plates (10" yellow or black arms) |
|
|
90303 89847 |
MX Beacon Module Side of Pole — 2 Arms/Hub Plates (18" or 24" yellow arms) |
|
|
91900 91902 |
MX Beacon Module Top of Pole — 4 - 4.5" Round, 2 Arms, 1 Hub Plate |  |
|
91872 91873 |
MX Beacon Module Top of Pole — Square Wood Post Extension, 2 Arms/Hub Plates |
|
|
91903 91905 |
MX Beacon Module Top of Pole — 4 - 4.5" Round, Dual Horizontal, 4 Arms, Two Hub Plates - Note, both arms thread into top of pole mount for this configuration. Only one shown. |
|
| 88423 |
MX LED Sign Module Side of Pole — banding - banding not included |
|
| 88424 |
MX LED Sign Module Side of Pole — through bolting to 2" square pole - 4.5" bolts |
 |
| 88425 |
MX LED Sign Module Side of Pole — through bolting to 2.5" square and 2.38 - 2.88" round - 6" bolts |
|
| 88426 |
MX LED Sign Module Side of Pole — U-bolt to 2.38" round (z-bar only) - 2.5" U-bolt |
 |
| 88427 |
MX LED Sign Module Side of Pole — U-bolt to 2.88" round (z-bar only) - 3" U-bolt |
|
| 88428 |
MX LED Sign Module Side of Pole — U-bolt to 4 - 4.5" round (z-bar only) - 4.5" U-bolt |
|
| 91585 | MX LED Sign Module Side of Pole — adjustable dual chevron |  |
| 91891 | Overhead Lighting Side of Pole — direct mount, 9" long |  |
| Part Number | Description | Image |
| 91697 |
Flasher Module Harness, 4' (for integrated beacons) |
 |
| 91698 | Flasher Module Harness, 16' | |

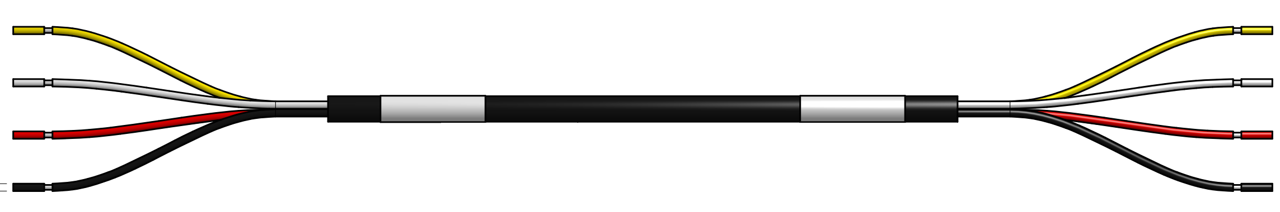

| 90542 | Flasher Module Harness, per foot |  |
| Part Number | Description | Image |
| Various |
Static Signs (various options) |
 |
| Part Number | Description | Image |
|
91601 91602 |

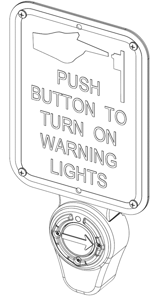

Polara iNX, with 9 x 12" R10-25 sign and mount |  |
|
91604 91923 |

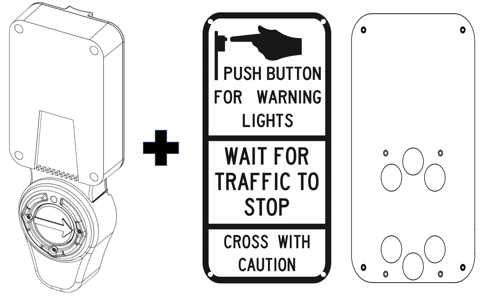

Polara iNX, with 9 x 18" FDOT FTP-68C-21 sign and mount |  |
|
91593 91594 |
Polara Bulldog |  |
| 70029 | Polara Bulldog, with low profile mount |  |
|
91586 91587 |

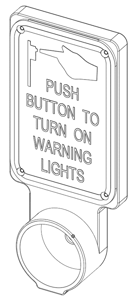

Polara Bulldog mount with sign frame, 5 x 7" |  |
|
91589 91590 |
Polara Bulldog mount with sign frame, 9 x 12" |  |
|
91592 |
Polara Bulldog mount with sign frame, 9 x 18" |  |
|
69981 |
R10-25 sign, 5 x 7" |  |
|
69982 |
R10-25 sign, 9 x 12" |  |
|
89313 |
FDOT FTP-68C-21 sign, 9 x 18" |  |
| Part Number | Description | Image |

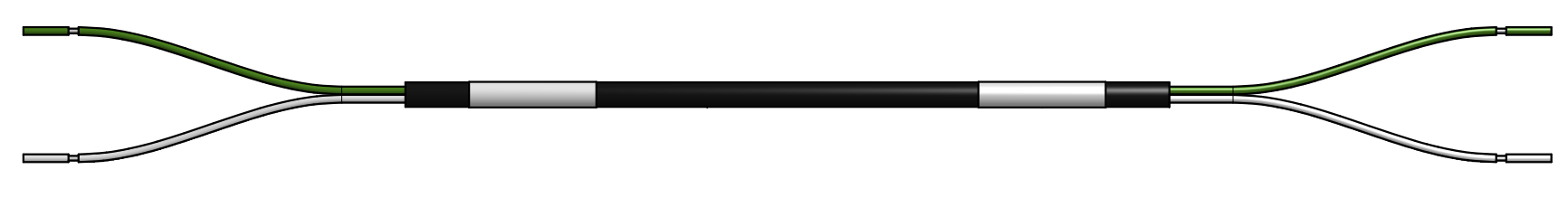

| 91693 | Bulldog Harness, 16' |  |
| 90539 | Bulldog Harness, per foot | |

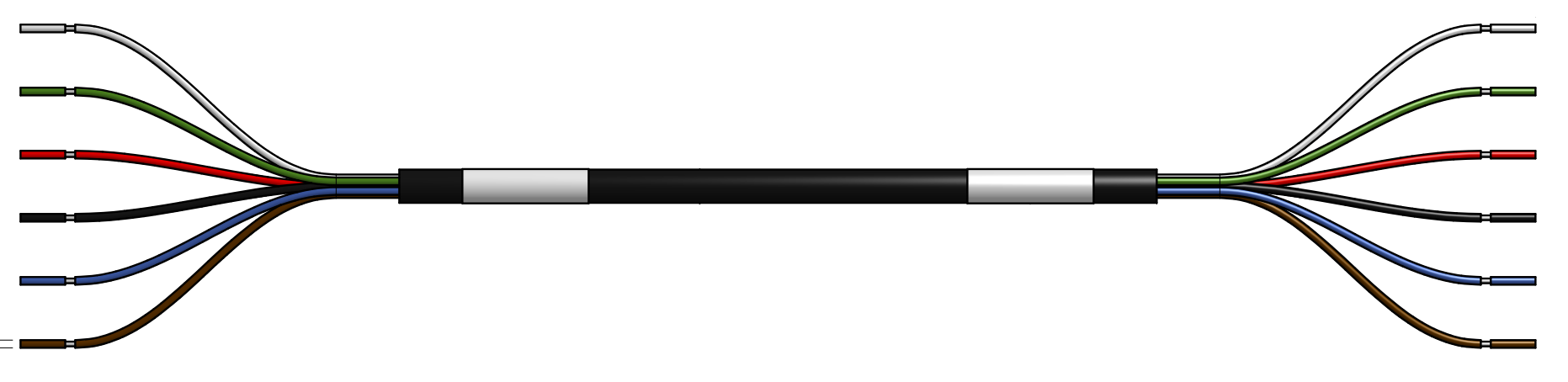

| 91702 | iNX/iDX Harness, 16' |  |
| 90541 | iNX/iDX Harness, per foot | |
| Part Number | Description | Image |
|
90460 90461 |
MX 100 Solar Power Module (15 W) |
 |
|
90464 90465 |
MX 200 Solar Power Module (30 W shown) |
|
|
90468 90469 |

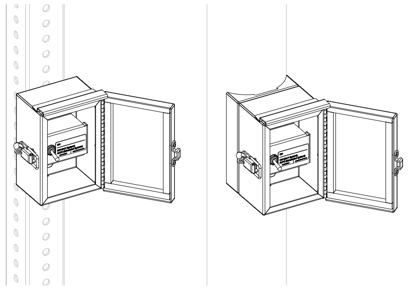

MX 300 Solar Cabinet Module (battery shown is separate) |
|
|
90472 90743 |
MX 300 AC Cabinet Module |
|
|
90476 90477 |
MX 400 Solar Cabinet Module (battery shown is separate) |
|
|
90480 90481 |
MX 400 AC Cabinet Module |
|
| Part Number | Description | Image |
| 91584 |
MX 100/200 — Top of Beacon Mount - for mounting signal head to top of pole mount |
 |
|
91611 91612 |
MX 100/200 Top of Pole Mount — 2 - 2.5" Square or 2.38 - 2.88" Round |  |
|
91615 91616 |
MX 100/200 Top of Pole Mount — 3.5 - 4.5" Round |  |
| 91625 | MX 100/200 Top of Pole Mount — Square Wood Post |
|
|
91574 91575 |

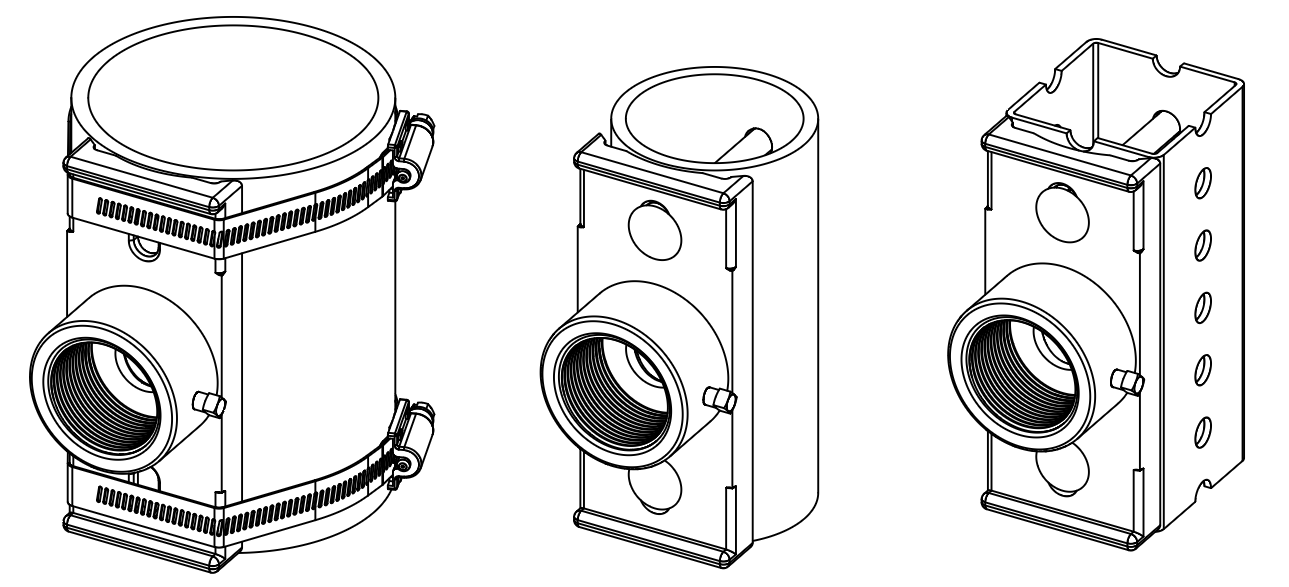

MX 100 Side of Pole Mount - hardware not included |
|
|
90578 90579 |
MX 100/200 Side of Pole Mount, Extended |
|
| N/A |

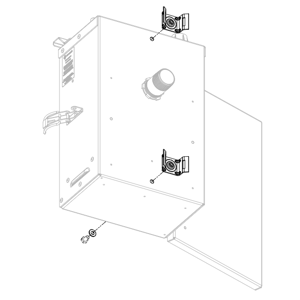

MX 300 Side of Pole Mount — through bolt or banding (included with MX 300 system) - hardware not included |
|
| N/A |

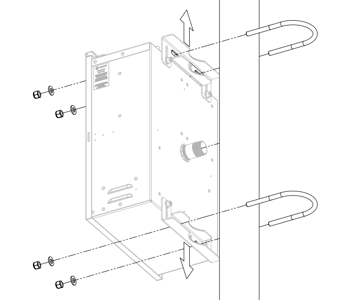

MX 400 Side of Pole Mount — through bolt or banding (included with MX 400 system) - hardware or U-bolts not included |
|
| 91917 |
MX 100/200/300/400 Beacon Module — Hole Plug Kit (black) |
|
| Part Number | Description | Image |
| 67620 | Battery, 7 Ah |  |
| 37912 | Battery, 18 Ah |  |
| 88055 | Battery, 35 Ah |  |
| 88026 | Battery, 55 Ah |  |

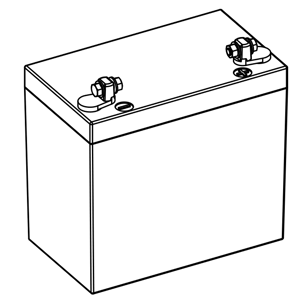

| 67842 | Battery, 100 Ah |  |
| Part Number | Description | Image |
| N/A | MX 100 solar panel, 15 W (included with MX 100 system) |  |
| 90692 | MX 200 solar panel, 30 W |  |
| 90693 | MX 200 solar panel, 50 W |
|
| 74387 | MX 300/400 solar panel, 50 W — with MC4 connectors |  |
| 74334 | MX 300/400 solar panel, 80 W — with MC4 connectors |  |

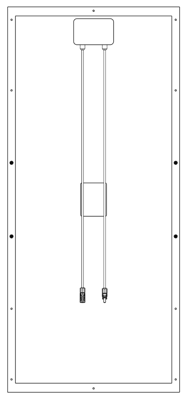

| 84003 | MX 300/400 solar panel, 170 W — with MC4 connectors |  |
| Part Number | Description | Image |

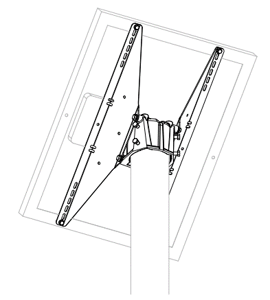

| 91632 | Top of Pole Mount — 50, 80, or 170 W panel |  |

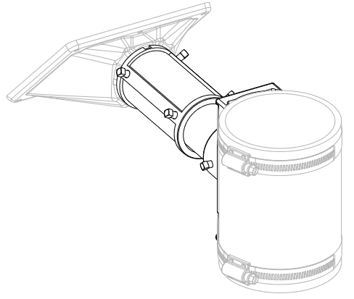

| 91636 | Side of Pole Mount — 50 or 80 W panel |  |
| 91837 | Side of Pole Mount — 170 W panel only |  |
| Part Number | Description | Image |
| 90458 | MX 300/400 — Solar Panel Harness, MC4, 16' |  |
| Part Number | Description | Image |
| 91628 | R829-MX — Override Switch Box |  |
| 91693 | R829-MX — Override Switch Box Harness, 16' | |

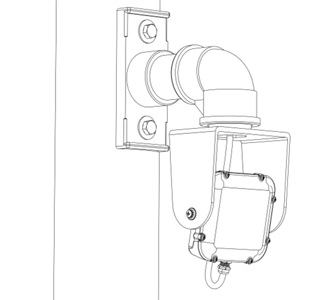

| 92137 | R247-MX — Radar Detection Kit |  |
