This article discusses the fuse/breaker ratings for each MX system.
Product applicability
The following products are discussed in this article:

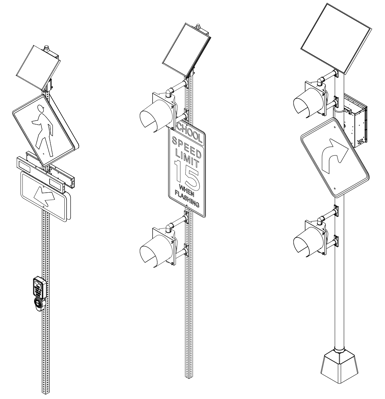

- MX Series: R920-MX, R829-MX, R247-MX and CHEVRON-MX
See the list below for the fuse and breaker ratings for each power module for your MX Series system.
| System | AC Power Supply Fuse/Breaker |
Power Module Board |
| MX 100 Solar |
2x 15 A MINI blade Littelfuse 0297015.WXT |
|
| MX 200 Solar |
2x 15 A MINI blade Littelfuse 0297015.WXT |
|
| MX 300 Solar |
2x 15 A MINI blade Littelfuse 0297015.WXT |
|
| MX 300 AC |
1x 4 A glass cartridge Littelfuse 0313004.HXP |
1x 15 A MINI blade Littelfuse 0297015.WXT |
| MX 400 Solar |
2x 15 A MINI blade Littelfuse 0297015.WXT 2x 15 A ceramic cartridge¹ Littelfuse 0314015.HX |
|
| MX 400 AC | 4 A breaker |
1x 15 A MINI blade Littelfuse 0297015.WXT |
¹MX 400 solar systems have supplemental terminal block fuses in addition to the power module board fuses

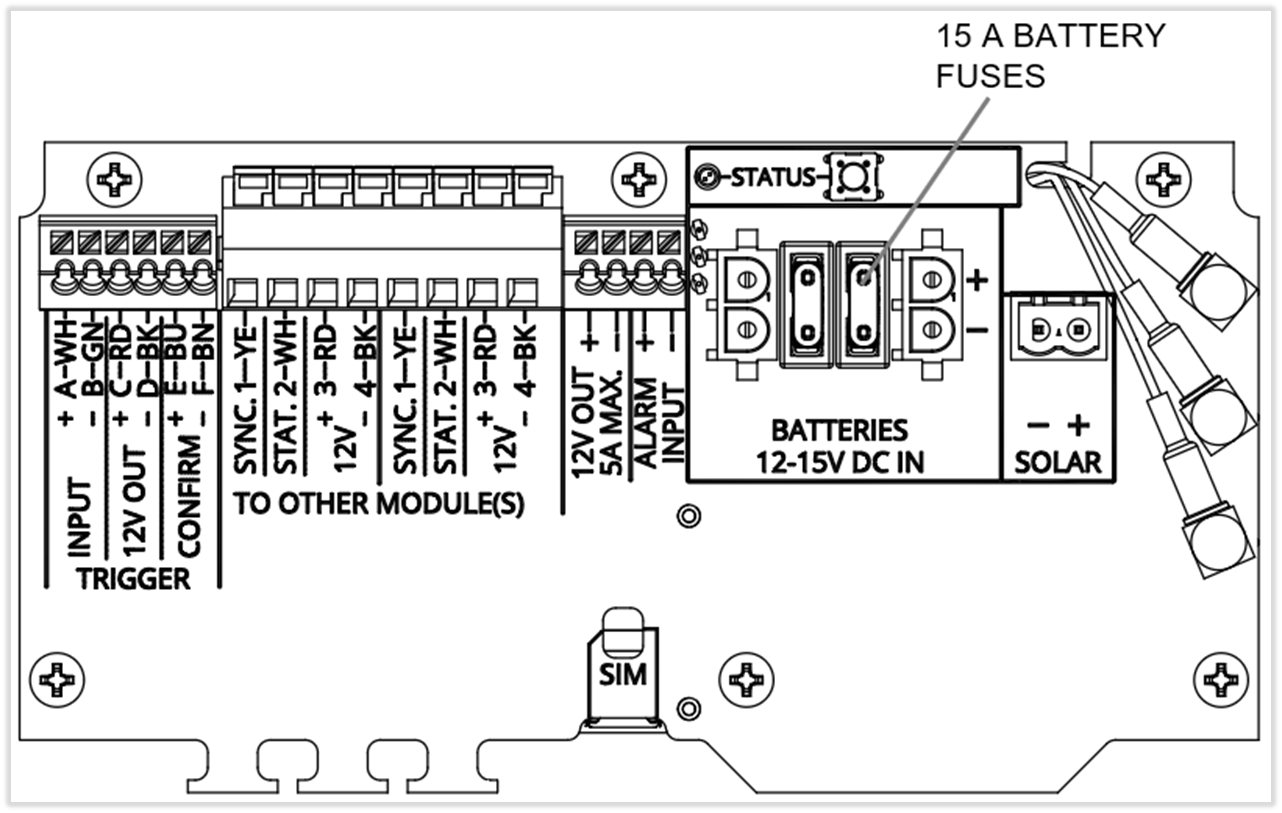

| Power Module Board |
AC Power Supply Fuse (MX 300) |

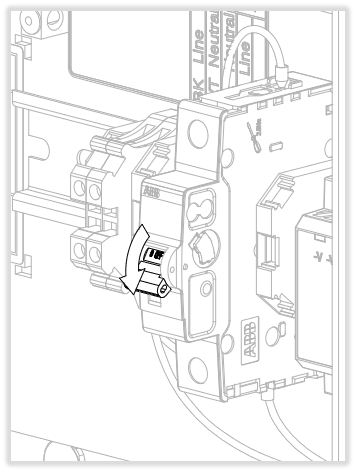

AC Breaker (MX 400) |
 |
 |
 |
