This article details the LED states and color decoding on the power module for your MX Series beacon system.
Product applicability
The following products are discussed in this article:
- MX Series: R920-MX, R829-MX, R247-MX and CHEVRON-MX

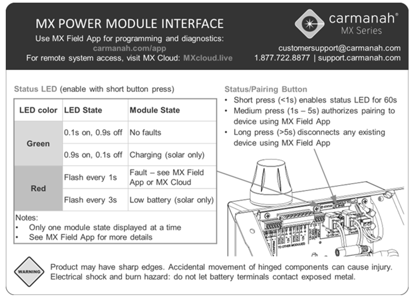

The power module found within your MX Series system has a multifunction status LED. Pressing the status button will enable the LED for 60 seconds.
| LED Color | LED State | Module State |
| Green | 0.1s on, 0.9s off | No faults |
| Green | 0.9s on, 0.1s off | Charging (solar only) |
| Red | Flash every 1s | Fault - see MX Field App or MX Cloud |
| Red | Flash every 3s | Low battery (solar only) |

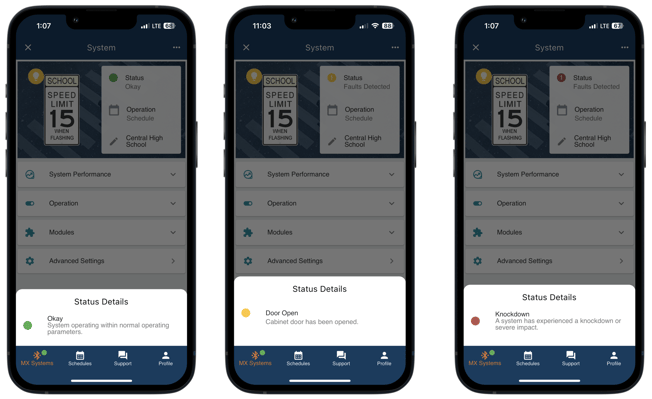

For more in-depth diagnostics use the MX Field App or log into your MX Cloud account.
Only one module state is displayed at a time. if there is a fault it will take precedence over showing the system is charging. For details see the MX Field App.
