How do I wire the Polara iNX/iDX into my E/F/G Series system?

This article details the wiring for the Polara iNX/iDX push button into a compatible Carmanah system.

Product applicability

The following products are discussed in this article:

E Series: R920-E and R820-E
F Series: R920-F and R820-F
G Series: SC315-G and R820-G

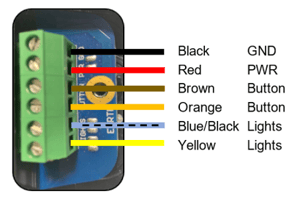

Please see the image below for wiring in the Polara iNX or iDX push button:

E/F Series:

E/F Series systems are prewired by Carmanah and only require termination to the button. If you are retrofitting the Polara iNX/iDX button into an existing compatible system please see our guide here.

G Series:

The G Series has exposed terminal blocks where Carmanah may or may not provide the push button wire harness.

For retrofitting opportunities please see our article here.

For installing the push button as a retrofit please see our guide here.
