      Can I add backplates to my RRFBs?

      This article details optional RRFB backplates and how to install them.

      Product applicability

      The following products are discussed in this article:

      • E Series: R920-E
      • F Series: R920-F
      • G Series: SC315-G

      Starting in 2022 Q2 you are able to add RRFB backplates to new and existing installations.

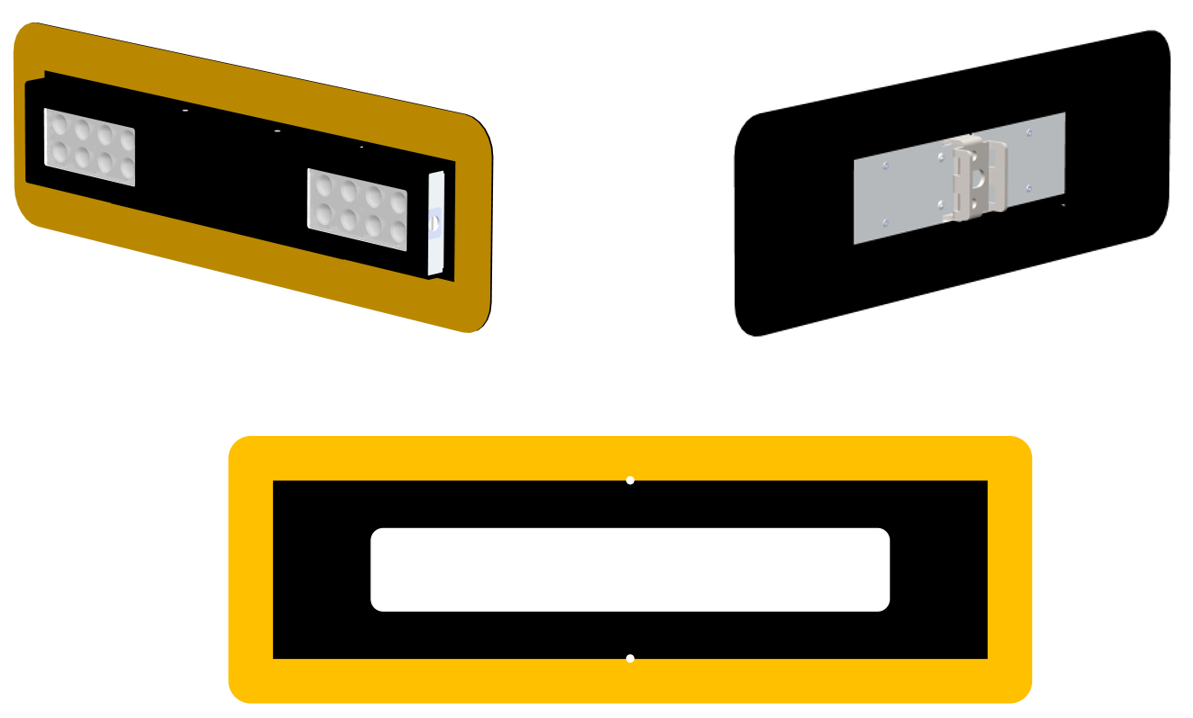

      Specifications

      • Aluminum, powder coated black
      • Optional fluorescent yellow retroreflective sheeting
      • 2" border

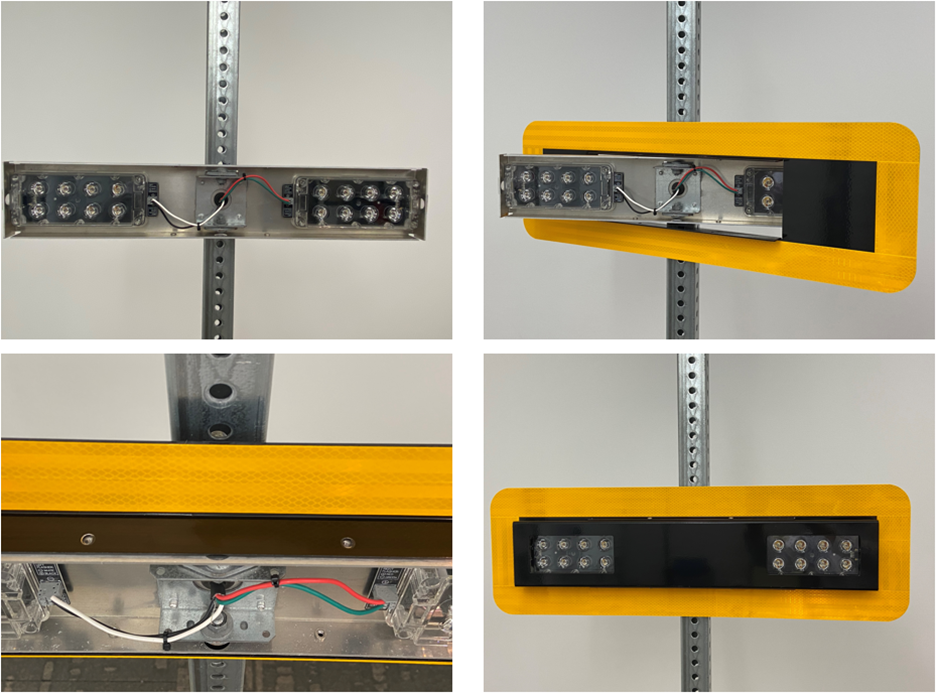

      Installation

      1. With the light bar already installed and wired, install the backplate over and behind the light bar with the flanges facing forward.
      2. Install light bar cover and align screw holes.
      3. Slide back plate flanges forward over light bar cover.
      4. Align and install four screws several turns, then tighten all four.
