      What components are user serviceable in the SPEEDCHECK-12 radar speed sign?

      This article discusses the various field replaceable components in the SPEEDCHECK-12 radar speed sign.

      Product applicability

      The following products are discussed in this article:

      • SpeedCheck: SPEEDCHECK-12





      The following components are field replaceable as part of the SPEEDCHECK-12 radar speed sign:

      All models

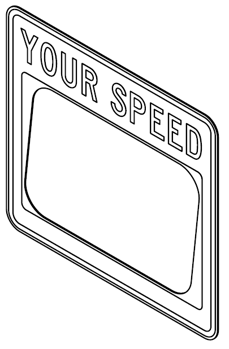

      Static sign

      • 3 sizes available
        • 24 x 22" YOUR SPEED on one line (non-MUTCD compliant)
        • 30 x 24" YOUR SPEED on one line
        • 30 x 36" YOUR SPEED on two lines

      LED display assembly

      • contains polycarbonate window, LED board, radar, strobe, and controller. Polycarbonate window can be replaced separately.
      Rear enclosure
      Rear enclosure mounting bracket
      Retaining bolt
      Handle
      Lock and Keys

      Battery only model

      Batteries

      • Includes harness with fuse holder

      Fuses

      • 7A, 250V 3AB 1/4" x 1-1/4"
      		 314, 322, 326, 332 3AG Series
      Battery charger

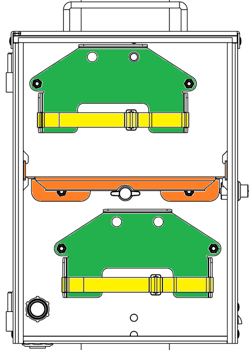

      Battery straps, brackets, and shelf

      Solar model

      Batteries

      • 12 V, 18 Ah
      • Includes harness with fuse holder

      Solar kit

      • Contains solar panel, hub plate, wedge cast mount, housing, housing lid, and charge controller. All items are individually replaceable

      Morningstar SunSaver Charge Controller SS-6-12V : Amazon.ca: Automotive

      AC model

      AC power supply



      Contact Carmanah or your regional distributor to order parts as needed.

      For images of various SPEEDCHECK-12 components please see our article here.
