This article details the two serial cable versions and which SpeedCheck controllers are supported.
Product applicability
The following products are discussed in this article:
- SpeedCheck: SPEEDCHECK-15 and SPEEDCHECK-18
With Applied Information option.
With the release of an updated controller in 2021 Q4 for the SPEEDCHECK-15 and SPEEDCHECK-18 radar speed signs we have also released an updated version of the serial cable used for remote connectivity with Applied Information. If you have received a new controller and have an existing configuration that utilizes the 10-pin serial cable you may need to replace the cable for the updated version.
Updated Serial Cable

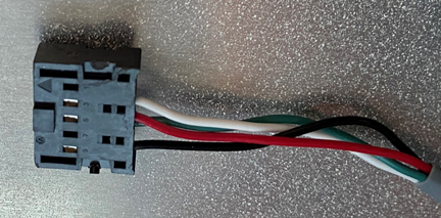

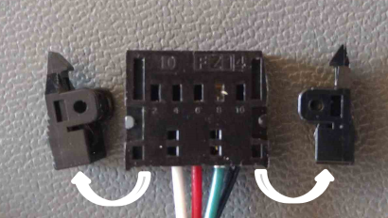

- 4 wire version, supported by the updated and legacy controllers. Legacy controller requires the locking levers removed.
Legacy Serial Cable
- 3 wire version, only supported by the legacy control board.

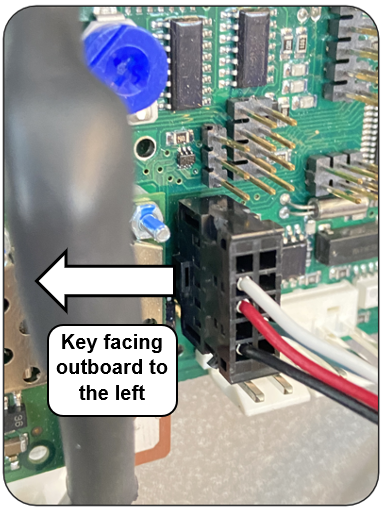

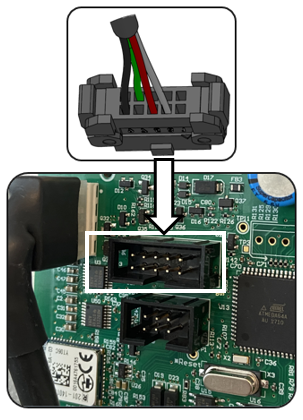

| Controller Version | Supported Serial Cable | Cable Orientation |
|
Updated
|
|
 |
|
Legacy (phased out 2022 Q4)
|
|
|
|
Legacy (phased out 2022 Q4)
|
|
|
For more information on the updated SpeedCheck controller please see our article here.
